Product Specifications
Technical details & performance standards

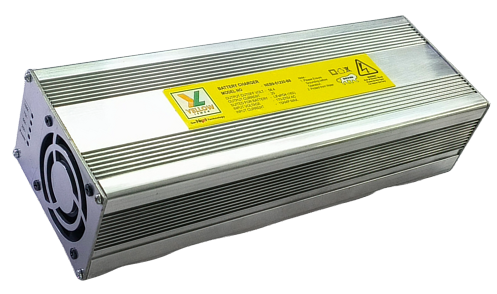

EV Battery Chargers
High-efficiency smart charging solutions for electric vehicles
Input Voltage
230 V AC, 50Hz
Battery Supported Type
Lead Acid / Li-ion / LiFePO4
Charging Operating Temp
10°C to 50°C
Mains Lead Type
Two / Three Cores with 2 / 3 Pins Plug as per model
DC Lead
Two Cores, Copper Conductors
Customizable Output Connector
Cabinet
ABS / Aluminium Extrusion
Protection
Surge, Short Circuit, Reverse Polarity, Over Load
Indicators
Power ON, Battery Charging Status,
Battery Full Charge, Optional Battery Charging Percentage
Special Feature
Natural / Forced Cooling
Optional Features
CAN Compatible, Electric Shock Preventer
DC to DC Converters
Reliable voltage conversion systems for stable power distribution
Efficiency
>85% Typical at Full Load
Load Regulation
±5%
Operating Ambient Temperature
-20°C to +60°C
Output Short Circuit
Protected
Isolation
Non-Isolated
Insulation
IP64
Motor Controllers
Intelligent motor control solutions for smooth and efficient EV performance
Suitable Battery Type
Lead Acid / SMF / Li-ion/ Li FePO4
Input Voltage
24 / 25.5 / 48 / 60 / 75 DC
Cabinet / Casing
Aluminium Extrusion
Power Rating Nominal
250W / 500W / 800W / 1000W / 1500W
Motor Compatibility
Hub / BLDC-60 / BLDC-120
